01
Petrochemical & Industry
Excellent extinguishing performance, water-saving, ideal for the fluorine-free transition.
Talk to our engineers
Compressed Air Foam System · EZ CAFS · Australia|China|Germany|Saudi Arabia
We Know the Physics.
We Knock Down Fires.
EZ CAFS designs and manufactures high-performance compressed air foam systems for fire vehicles, industrial facilities, energy storage sites and special-response teams.
Mobilevehicle and modular CAFS
Fixedcontainerized industrial protection
Remoterobot and drone configurations
Applications
Protection where access,
water or time is limited.
EZ CAFS systems are configured for difficult fire risks across industrial, infrastructure and special-response environments.
02
Power & Data Center
Specialized extinguishing technology with ecological and economic advantages.
03
Recycling
A great choice for complex fuel loads and business continuity.
04
Fire Brigade
From first response to heavy-duty suppression, from municipal fleets to remote forestry.
05
Infrastructure
Compact systems, long-reach delivery, and rapid coverage.
06
Special Application
Hazmat response, decontamination, and specialized accessories.
Engineering better fire attack
You really don’t need that much water flow.EZ CAFS make every drop count.

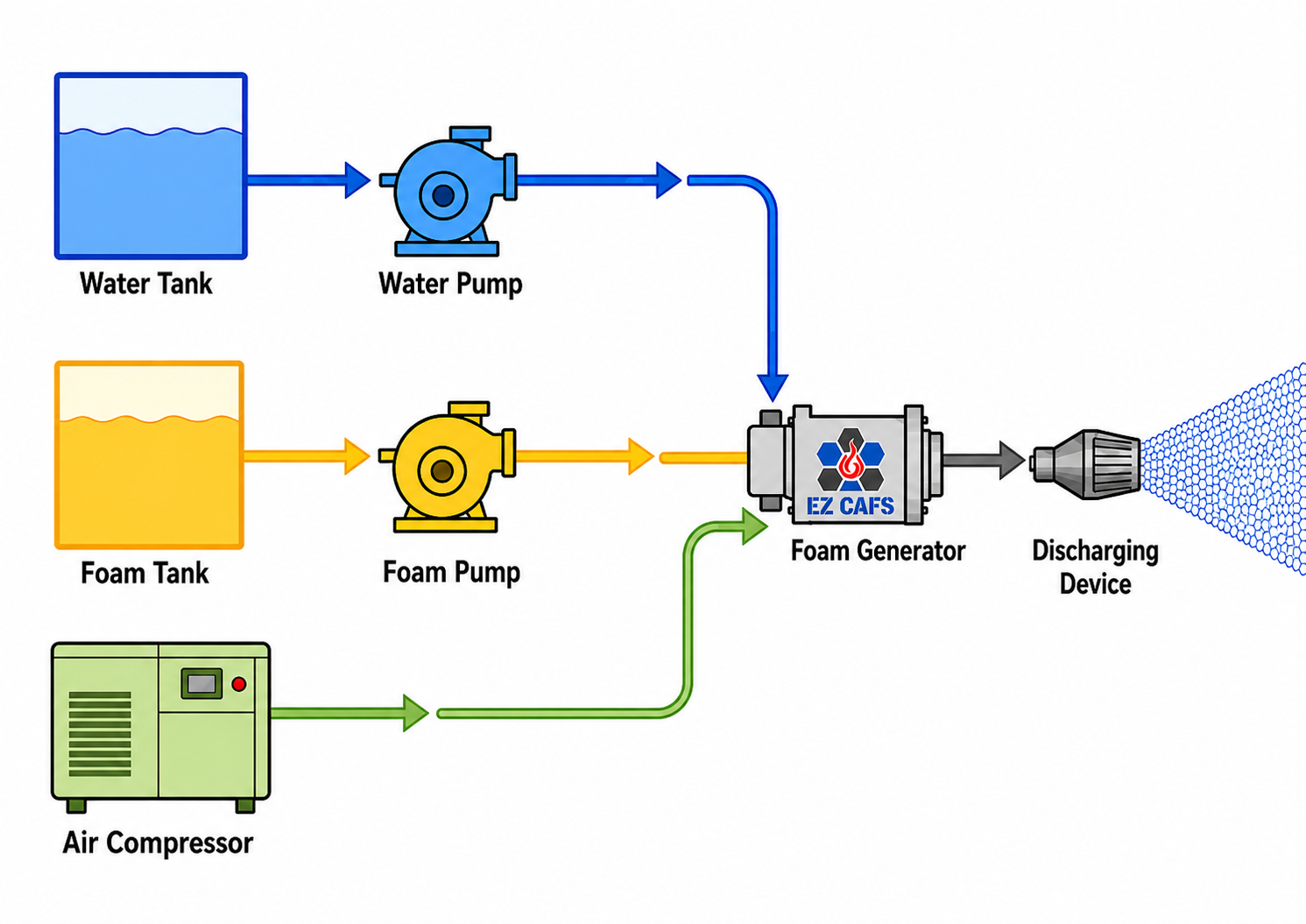

How CAFS works
3 Elements,2 Phases,1 Consistent Flow
Homogeneous bubble structure is generated by EZ CAFS proprietary techniques to eliminate dangerous slug/plug flow. You always get the same quality foam bubbles by a simple click on our touchscreen. No matter how long the hose is, don’t even to care about the several pages how to operate a CAFS
Read the catalogue technology overview
Field-ready performance
300m/400m/1000m
That’s the height reached by drone, improvised riser and horizontal delivery of 65mm hose. Check our YouTube site for testing video.
120L
This is how much water used to extinguish a fully developed vehicle battery fire. Search EZ CAFS in YouTube to find the extinguishing of real scenario.
22.4μA
That is the leakage current when EZ CAFS is shooting at a 100kV energized body at 4 meters, which is significantly lower than the 500μA threshold.
66kg
It is the fast-deploy recon/attach robot EZ Sparky full weight. With a detachable monitor, it is a handy tool to first respond fire fighters can always by side.
Contact us for more amazing facts.
Product range
One CAFS platform.
Multiple ways to deploy.
Explore the families covered by the V1.3 catalogue. This selection is not the complete EZ CAFS range.
EZ CAFS / 01
EZC-BIP series

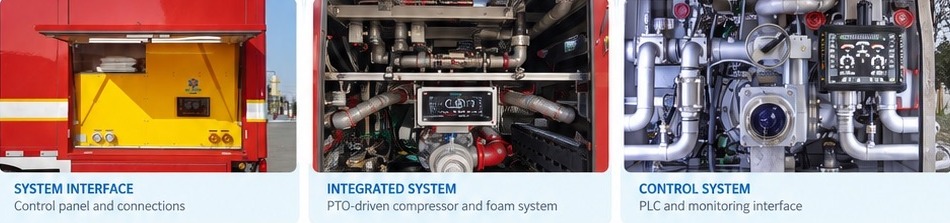

Vehicle-Mounted Built-in PTO
PTO-driven compressed air foam systems for integration with vehicle-mounted fire pumps. The modular package combines a screw-type air compressor, foam proportioner, foam generator and control system.- Six sizes: EZC-200-BIP to EZC-4000-BIP
- PLC and touchscreen HMI
- 0.8 MPa working pressure
| Model | Solution flow · L/min | Max. output · L/min |
|---|---|---|
| EZC-200-BIP | 200 | 1,200 |
| EZC-400-BIP | 400 | 2,400 |
| EZC-600-BIP | 600 | 4,200 |
| EZC-1200-BIP | 1,200 | 7,200 |
| EZC-2400-BIP | 2,400 | 14,400 |
| EZC-4000-BIP | 4,000 | 24,000 |
Catalogue pp. 5–6. Standard proportioning: 0.1–3%; optional range: 0.1–6%.
View catalogue source Discuss this configuration
EZ CAFS / 02
EZC-130-SCP · EZC-200-SCT · EZC-270-SCT
Modular Self-Contained CAFS
Engine-driven packages combining a petrol engine, pump, compressor, proportioner and foam generator. Designed for pickups, vans, utes, trailers and containers, with operation independent of the vehicle chassis.- SCP: push-button / toggle controls
- SCT: PLC + touchscreen HMI
- Fuel and electrical supply may be chassis-fed
| Model | Solution / output · L/min | Pressure · bar |
|---|---|---|
| EZC-130-SCP | 130 / 930 | 8 |
| EZC-200-SCT | 200 / 1,400 | 8 |
| EZC-270-SCT | 260 / 1,860 | 13 |
Catalogue pp. 7–8. Approximate weights: 220 / 335 / 455 kg respectively. The EZC-270-SCT is listed with 260 L/min solution flow; the model name is retained as printed.
View catalogue source Discuss this configuration
EZ CAFS / 03
EZC-600-SCT
Diesel Self-Contained CAFS
A stand-alone diesel-driven CAFS package for rapid intervention vehicles, new fire truck builds and retrofits. Water storage is supplied by the customer.- 600 L/min solution flow
- 4,200 L/min extinguishing-agent output
- 8 bar working pressure
| Parameter | Catalogue value |
|---|---|
| Water-only flow | >800 L/min |
| Pump nominal pressure | 10 bar |
| Foam tank | 40 L · PP material |
| Weight | 932 kg |
| Dimensions · L × H × W | 1,200 × 850 × 950 mm |
| Water inlet / foam outlet | DN80 / DN80 |
Catalogue p. 9. These specifications apply to EZC-600-SCT, not all self-contained systems.
View catalogue source Discuss this configuration
EZ CAFS / 04
Remote-operated tracked platform
Sparky Fire-Fighting Robot
An electric tracked robot with a portable monitor, hose-detaching device, camera, lighting and self-protection nozzles for remote water or foam delivery.- Up to 2,000 L/min, depending on monitor
- ≥1,000 m remote range in a visual, open area
- ≥2 hours operation in standard configuration
| Parameter | Catalogue value |
|---|---|
| Chassis · L × W × H | 900 × 550 × 280 mm, without monitor |
| Weight | Approx. 90 kg, excluding battery |
| Travel speed | 0–3.5 km/h |
| Climbing ability | ≤40° |
| Obstacle / trench crossing | ≤300 / ≤600 mm |
| Power | Lithium battery pack; hot-swap option |
Catalogue pp. 10–11. The RIV-Robot configuration on p. 13 lists different flow and mobility figures; those are not applied to Sparky.
View catalogue source Discuss this configuration
EZ CAFS / 05
RIV / FSU
Rapid Intervention Vehicles
Compact pickup- or van-based response vehicles built around modular CAFS packages. The catalogue presents configurations for urban response, forestry, drone support, robotic response and hazmat incidents.- RIV-Urban: ≥130 L/min CAFS; 400 L water tank
- RIV-Urban: two-person operation
- Task-specific modular equipment
| Configuration | Primary role |
|---|---|
| RIV-Urban | Compact first response |
| RIV-Forestry | Controlled low-flow attack reels |
| RIV-Drone | High-rise and difficult-access response |
| RIV-Robot | Remote monitor delivery |
| RIV-Hazmat Response | Foam application and response equipment |
Catalogue pp. 12–13. Vehicle, payload, reach and monitor performance depend on the selected configuration.
View catalogue source Discuss this configuration
EZ CAFS / 06
Industrial facilities · substations · BESS
Fixed CAFS Container
Containerized compressed air foam suppression connected to protected areas by fixed pipelines. Systems can operate independently or integrate with firefighting robots and industrial control systems.- Duty and standby water pumps / compressors
- Automatic or manual control
- Container, water storage and CAF generation module
| Compartment class | Solution flow · L/min | Max. agent output · L/min |
|---|---|---|
| 5.4 m · energy storage | 400 | 4,400 |
| 7 m · substations / small petrochemical | 600 or 800 | 4,200 or 4,800 |
| 9 m · large facilities | 800–4,000 | 5,600–24,000 |
Catalogue pp. 14–15. Working pressure ≤0.8 MPa. Water tanks: 8,000 L / 8,000 L / 18,000 L (or as required), respectively. Final protection design is project-specific.
View catalogue source Discuss this configuration
EZ CAFS / 07
Hydrant, fire truck or portable-pump supply
Retrofit CAFS-200
A modular retrofit system using an external pressurized water supply and an engine-driven air compressor. The module has no water pump and can connect directly to a pressurized hydrant.- 200 L/min flow at 0.4 MPa
- 1,400 L/min maximum system output
- Mechanically fixed 1% or 3% proportioning
| Parameter | Catalogue value |
|---|---|
| Working pressure | ≤0.8 MPa |
| Dimensions · L × W × H | ≤1,200 × 500 × 700 mm |
| Weight | Approx. 160 kg |
| Foam / fuel tank | 20 L / 15 L |
| Compressor maximum flow | 1,200 L/min |
| Delivery with DN65 hose | ≥170 m at 0.2 MPa; ≥400 m at 0.5 MPa |
Catalogue p. 16. Gasoline engine: 21 HP (15.5 kW). Effective discharge distance ≥18 m. Delivery figures describe the stated hose and pressure conditions.
View catalogue source Discuss this configuration
EZ CAFS / 08
Reconnaissance-vehicle integration
CBRN Decontamination System
Vehicle-mounted CAFS and decontamination equipment for personnel, equipment and sampling ports, with an additional small Class A/B fire-suppression role. Automatic proportioning and agent selection support switching between functions.- PTO hydraulic drive; optional independent drive
- 10-inch touchscreen and PLC control
- Personnel chamber and sampling-port configurations
| Parameter | Catalogue value |
|---|---|
| Clean water / wastewater | 400 L / 300 L |
| CBRN / oil / foam concentrates | 20 L each |
| Decontamination-agent flow | Up to 130 L/min |
| Compressed-air flow | Up to 800 L/min |
| Connections | DN50 water and CAF outlets |
| Hose reel | DN25 · 30 m quick-attack reel |
Catalogue p. 17. Includes heating, thermal insulation and an electric flushing system.
View catalogue source Discuss this configuration
EZ CAFS / 09
EZC-X-SES-FDD
Fast Deployment Drone Pod
A modular stored-energy compressed air foam pod designed for firefighting drones. The system uses standard SCBA cylinders and is designed for quick refilling and rapid deployment.- Stored-energy CAFS
- SS304 storage tanks
- Customizable design flow rate
| Model | Capacity / dry weight | Pressure / range |
|---|---|---|
| EZC-80-SES-FDD | 100 L / 20 kg | 11 bar / 13 m |
| EZC-60-SES-FDD | 120 L / 60 kg | 11 bar / 16 m |
| EZC-200-SES-FDD | 200 L / 75 kg | 11 bar / 19 m |
Catalogue p. 18, transcribed as printed. The first two model/capacity pairings need manufacturer confirmation. Aircraft payload and operating compatibility must be confirmed for the selected pod.
View catalogue source Discuss this configuration
EZ CAFS / 10
Tank-refilling accessory
Foam Fill Device
A compact stand-alone or retrofit filling kit powered by the chassis battery. A self-priming diaphragm pump transfers foam concentrate to the tank, with sensor-based automatic stop and manual flushing.- 24 V supply · ≤1.0 kW
- ≥50 L/min diaphragm pump
- Automatic stop when the tank is full
| Parameter | Catalogue value |
|---|---|
| Pump | AFLAS diaphragm |
| Priming capacity | Up to 3 m |
| Head | Up to 20 m |
| Filling pipe | 32 mm flexible clear tube |
| Flush | Manual three-way valve |
| Automatic stop | Pressure sensor or mechanical sensor |
Catalogue p. 19. Product illustration is marked as a reference image in the catalogue.
View catalogue source Discuss this configurationStart a project
Tell us the hazard.
We’ll help shape the system.
info@ez-cafs.com
+86 400 17 200 17
Xuzhou, Chengdu, Shanghai and Hong Kong, China · Sydney, Australia · Berlin, Germany · Riyadh, Saudi Arabia

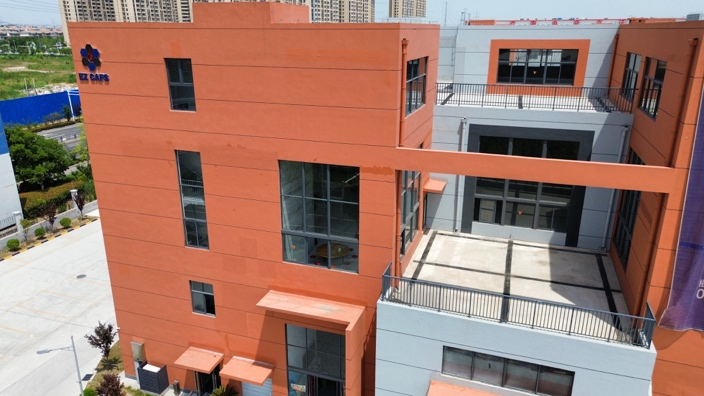

DESIGNED & BUILT IN XUZHOU
About EZ CAFS
An engineering team built for fast, practical innovation.
EZ-CAFS Fire Fighting Technology Co., Ltd. is an original design manufacturer based in Xuzhou, China, founded by Dr. Dongdong Ji. The company develops compressed air foam fire-suppression systems and is a member of UFTC, connecting manufacturing resources with local project delivery.
In-house system design and manufacturing
Global fire-protection manufacturing alliance
